PORTABLE JAW CRUSHING PLANTS
We can fabricate to your specific needs… BUILT TO SUIT!

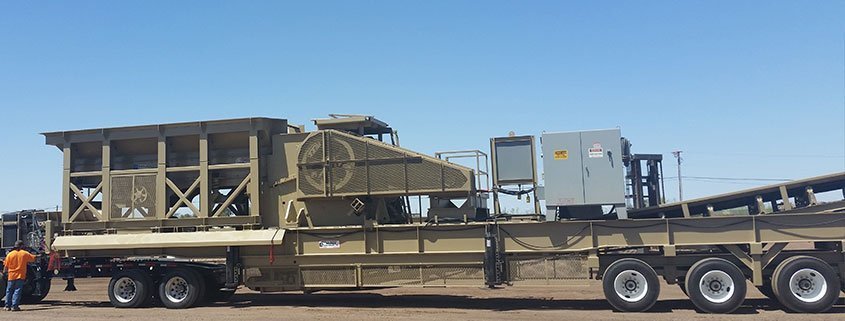

- New Reuter Equipment Portable Jaw Crusher Plant
- Pioneer 3055 Jaw Crusher powered by 200 hp, 1200 RPM, TEFC electric motor
- Crusher is equipped with hydraulic wedge type adjustment with 1 ½ hp electric/hydraulic power pack
- Pioneer 50” x 20’ vibrating grizzly feeder with two-step grizzly section consisting of two levels of 30” long grizzly tynes for superior grizzly efficiency; approximately nine cubic yard receiving hopper; feeder is powered by 50 hp variable frequency drive
- Bypass chute diverts material passing through grizzly tynes to under crusher conveyor
- 48” wide under crusher conveyor with 20 hp electric drive, rubber impact idlers at feed end, three-ply conveyor belt and full-length flashing
- Operator’s plat-form with hand railing and access ladder
- All mounted on main frame with quad axle assembly, Budd wheels, sixteen 11:00 x 22.5 14-ply tires, mud flaps, lights and screw jacks
- Four WH-0573 hydraulic “run-on” legs, 70,000 pound capacity per leg; 6”bore; 24 ½” stroke; includes #4 valve assembly, gasoline power unit and all fittings and hoses
- 60” x 60”x 16” Motor Control Panel, as follows:
- One (1) 600-amp main breaker with thru the door disconnect handle
- One (1) 400-amp breaker with a 200hp Soft Start and emergency bypass contactor for 200hp crusher motor
- One (1) 100-amp 480 volt breaker with quick disconnect plug for VGF drive
- One (1) Size 2 starter with a breaker and quick disconnect plug for 20hp conveyor motor
- One (1) Size 1 starter with beaker and quick disconnect plug for 1 ½ hp motor for hydraulic auto adjust
- One (1) hour meter
- One (1) remote push button console on 50’ cord; includes emergency stop, amp meter, and 3 sets of start/stop push buttons; free standing panel
SUBJECT TO AVAILABILITY – CALL FOR PRICING
PORTABLE CONE CRUSHING PLANTS
We can fabricate to your specific needs… BUILT TO SUIT!

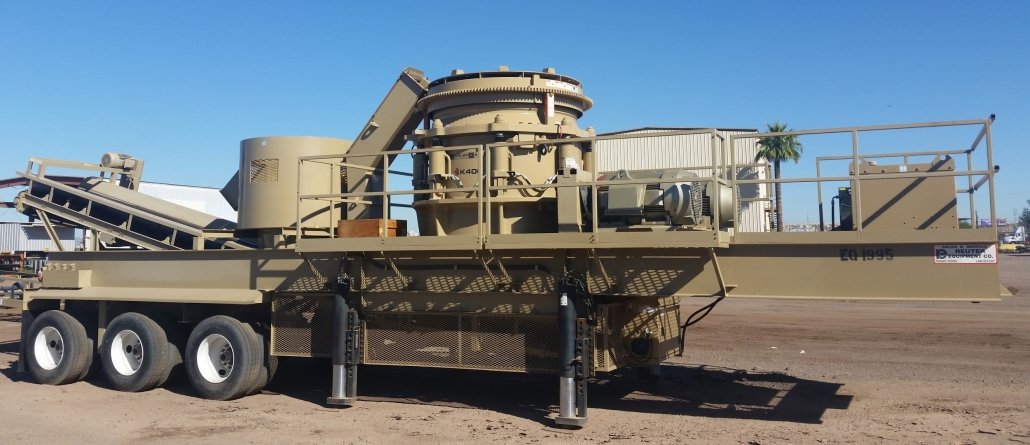

- KODIAK K400+ CONE CRUSHER
- KCS controls
- Dual 200 HP TEFC 1200 RPM crusher motor
- Crusher feed hopper extension
CHASSIS
- Triple axle, heavy duty structural I beams, hutch 9700 series suspension, 22,500# axles with 11:00 x 22.5 tires,
- Stationary cribbing supports or hydraulic support legs
- Standard fifth wheel plate
- Air brakes, lights, mud flaps, safety guards, walkways, handrails, access ladder
- ARlined under crusher hopper with maintenance door.
48” UNDER-CRUSHER REAR DISCHARGE CONVEYOR
- 20 HP TEFC electric motor
- Vulcanized lagged head pulley
- Self-cleaning wing tail pulleys
- Dodge SCM bearings,
- EMA C sealed idlers
- Grade 2 – 3 ply belt with mechanical splice
