PORTABLE SCREENING PLANTS
We can fabricate to your specific needs… BUILT TO SUIT!

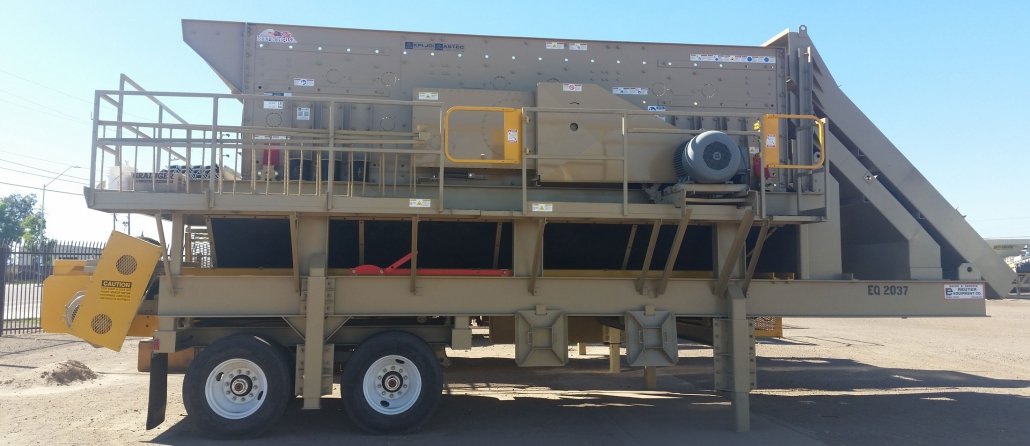

- 8203LPPM LOW PROFILE SCREENING PLANT
- Includes motor mount, v-belt drive, belt guard, 60 HP TEFC electric motor at 1200
RPM - AR lined feed box and discharge lips
- Single crown decks with draw plates and fasteners for side tension screen cloth. LESS
SCREEN CLOTH
TANDEM AXLE CHASSIS
- Heavy duty main frame beams, Hutch 9700 series suspension, 22,500# axles, 11:00 x 22.5 tires,
- Stationary cribbing supports
- Fifth wheel plate
- Air brakes
- Lights, mud flaps and safety guards
60” UNDER SCREEN CONVEYOR
- 15 HP TEFC electric motor
- Lagged head pulley
- Self-cleaning wing tail pulley
- Dodge reducer and SCM bearings
- CEMA C sealed idlers
- Grade 2 2-ply belt with mechanical splice
UNDER SCREEN HOPPER
- 3/16” hopper walls with 3/16” AR liner
- Adjustable skirt board wipers
WALKWAYS AND PLATFORM
- 24” fold down walkways both sides of screen with back platform
- Diamond plate walkways
- 4” toe
DISCHARGE CHUTES – AR lined products discharge chutes. Straight chutes, one for each deck.
PAINT – Two part urethane primer, two part urethane topcoat – Factory standard color(s).
OTHER MODELS AVAILABLE: 6203LPPM, 7203LLPM
